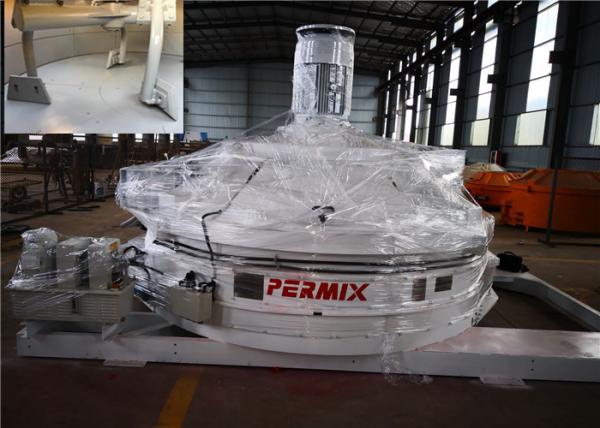

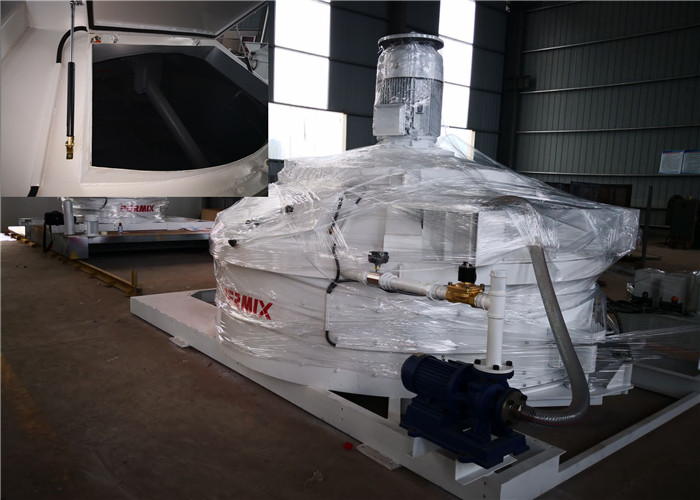

Wear - Resistant Alloy Plates Planetary Cement Mixer Ceramic Materials
Product advantage and description
Concrete mixer consists of feeding mechanism, mixing mechanism, discharging mechanism, water supply system, electric control system, etc. Plasticity, ductility, briquettability concrete and all kinds of mortar can be mixed .In this machine, the two horizontal mixing shafts are mixed with the reverse equal-speed rotation, which can be realized the maneuvering discharge through the pneumatic piston push rod.Concrete mixer is advanced at home and abroad, the ideal model, and has a high degree of automation, mixing of good quality, high efficiency, low energy consumption, low noise, easy operation, fast discharging, long service life of lining and blade, convenient maintenance. Applicable to plasticity, ductility, and lightweight aggregate concrete and various mortar mixing.
Operation Instruction
The instruction must be followed during operation:
1. Do not run over loaded;
2. Discharge material in the trough after an emergency stops. Start with load is forbidden;
3. After each shift, clean the trough, tools, check the tightness of nuts, and open and close the discharging door Several times to ensure it works smoothly,
Check the blades and tiles weekly and replace them if necessary;
4. The anti-wear parts made by our company must be used to avoid any damage to the machine;
5. Stay away from the discharging area to avoid any injury to workers.
| Technical Data |
| | PMC50 | PMC 100 | PMC 150 | PMC 250 | PMC 330 | PMC 500 | PMC 750 | PMC 1000 | PMC 1500 | PMC 2000 | PMC 2500 | PMC 3000 | PMC 4000 | PMC 4500 |
| Output capacity(L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 |
| Input capacity(L) | 75 | | 225 | 375 | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 | 6000 | 6750 |
| Input capacity(kg) | 120 | | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 | 9600 | 10800 |
| Diameter of Mixing Tank(mm) | | | | 1300 | 1540 | 1900 | 2192 | 2496 | 2796 | 3100 | 3400 | 3400 | | |
| Mixing Power kw | 3 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 55 | 75 | 90 | 110 | 160 | 200 |
| Blade QTY | 1/2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 3*2 | 3/6 | 3/9 | 3/9 | 3/9 |
| Side Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bottom Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight(kg) | 700 | | 1000 | 1200 | 1700 | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 | 16000 | 18000 |
